Can anyone tell me how to wire a Scart cable onto a Japanese MD1?
MD1 hardwire Scart
- Thread starter Superfamifreak
- Start date
lordofduct
Established Member
1 Composite Video
2 Ground
3 Audio Mono (use Headset connector for stereo)
4 Green
5 +5VDC
6 Sync
7 Red
8 Blue
Well here is the pinout for the sega MD model 1. These being the female ends.
Just wire the pins accordingly to a scart connector. That pin out being.
1 AOR Audio Out Right
2 AIR Audio In Right
3 AOL Audio Out Left + Mono
4 AGND Audio Ground
5 B GND RGB Blue Ground
6 AIL Audio In Left + Mono
7 B RGB Blue In
8 SWTCH Audio/RGB switch / 16:9
9 G GND RGB Green Ground
10 CLKOUT Data 2: Clockpulse Out
11 G RGB Green In
12 DATA Data 1: Data Out
13 R GND RGB Red Ground
14 DATAGND Data Ground
15 R RGB Red In / Chrominance
16 BLNK Blanking Signal
17 VGND Composite Video Ground
18 BLNKGND Blanking Signal Ground
19 VOUT Composite Video Out
20 VIN Composite Video In / Luminance
21 SHIELD Ground/Shield (Chassis)
just leave the pins you dont need empty.

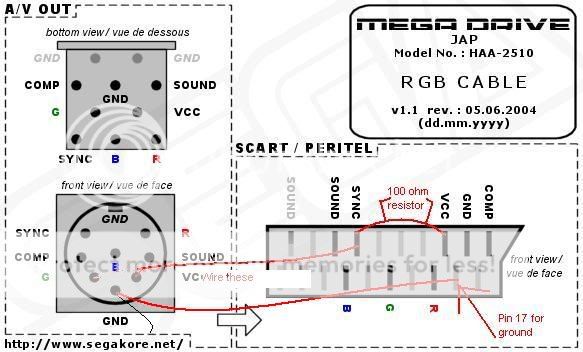

Originally posted by Kaneda@Oct 12, 2004 @ 02:36 AM
from a good Sega French site :
else you can hack a french rgb cable (tutorial on this same site)
or you can also make a RCA cable (same site)
[post=120825]Quoted post[/post]
OK, have hardwired the scart to the motherboard, but I don't get a picture. Any reason for this? My TV shows as recieving a signal, but it automatically switches the tv to widescreen mode.
So then how should I wire it up?
lordofduct
Established Member
i BELIEVE this is right.
I just want to add. I can understand not knowing what arakon said... but come on how can you not understand instructions the sligtest to not just give it a f-ing try.
Because I'm not making a 20 mile round trip to get a 100 Ohm resistor as there is nowhere local that sells them and believe me I've looked.
Another problem with the MD is that there is no sound, except mono through the headphone jack so what I've done is wire it up with a RCA video lead which gives a picture. If I wanted to add a sound cable, could I wire it to the headphone jack and ground? I'm not a very technical person, so where is a ground point near the headphone jack?
Another problem with the MD is that there is no sound, except mono through the headphone jack so what I've done is wire it up with a RCA video lead which gives a picture. If I wanted to add a sound cable, could I wire it to the headphone jack and ground? I'm not a very technical person, so where is a ground point near the headphone jack?
so there isnt a commercial scart cable for sale for the genesis? would suck if it didnt.
so there IS a scart cable commercially avaible? who made it?
lordofduct
Established Member
The thing is, in the UK, I can't find a MD2 RGB Scart cable anywhere. The reason I wanted to hardwire one onto the MD is because I have 4 systems.
1 with a RGB cable
1 with hardwired composite AV cable
1 with a seperate composite AV cable
1 with a hardwired RF box
All are 50/60Hz switchable apart from the one with the RF. I want to add the switch to that one and I just figured it would be cheaper to hardwire a stereo Scart lead to it than find one.
wow! Im a newby, but u guys know like so much! I know im going off topic sorry.
i just bought a megadrive 2 with 2 controllers and 4 games just for the scart cable it came with. but i want a mega drive 1 scart. .
Perhaps it is compatible with it?
.Perhaps it is compatible with it?
