I recently built a new supergun because I'd modified my old one to suit my needs, but I was having problems with wires breaking and it had become an unrelaible mess. I also wanted to add a couple of buttons but the supergun's case was sealed tight and it looked like I'd break it before opening it.
Here it is
[attachmentid=1032]
Some details:

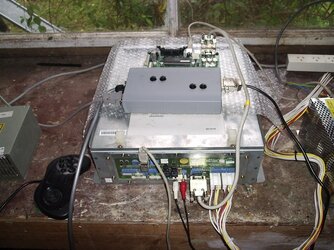

The DB-9 connector on the bottom left hand side runs to the RGB monitor.
The grey cable above it is a 4 core power lead that runs off to the PC PSU.
Above that is a single RCA connector for mono audio.
In the JAMMA connection is something kinda interesting...
The connector on the right hand side uses a DB-15 connector into which plugs a modified Saturn pad. One day I'll add player 2...
The two buttons on the left are Test and Service. The two on the right are Coin 1 and Coin 2. I'll label them one day.
[attachmentid=1033]

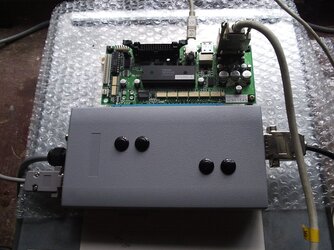

Would you look at that? The board in the JAMMA slot is a NAOMI I/O board.

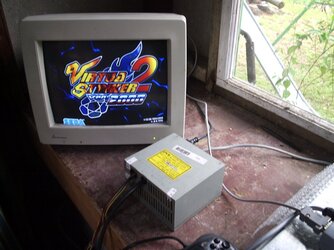

In this picture you can see the PC PSU on the left and the NAOMI PSU on the right.
[attachmentid=1034]
Soccer anyone?
The monitor is an old Mitsubishi something or other that will run at both 15KHz and 24KHz. I found it at work being used as a plain old video monitor.
I'm hoping one day to get something a little larger and that will also do from 15KHz to 31KHz.
[attachmentid=1036]

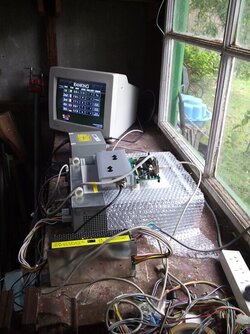

And here's a pic of the whole setup.
With this I can play all of my JAMMA and System 16 boards. At the moment I can only watch and listen to my driving games, but I'm planning on making some new controls and adaptors for them soon.
Here it is
[attachmentid=1032]
Some details:
The DB-9 connector on the bottom left hand side runs to the RGB monitor.
The grey cable above it is a 4 core power lead that runs off to the PC PSU.
Above that is a single RCA connector for mono audio.
In the JAMMA connection is something kinda interesting...
The connector on the right hand side uses a DB-15 connector into which plugs a modified Saturn pad. One day I'll add player 2...
The two buttons on the left are Test and Service. The two on the right are Coin 1 and Coin 2. I'll label them one day.
[attachmentid=1033]
Would you look at that? The board in the JAMMA slot is a NAOMI I/O board.
In this picture you can see the PC PSU on the left and the NAOMI PSU on the right.
[attachmentid=1034]
Soccer anyone?
The monitor is an old Mitsubishi something or other that will run at both 15KHz and 24KHz. I found it at work being used as a plain old video monitor.
I'm hoping one day to get something a little larger and that will also do from 15KHz to 31KHz.
[attachmentid=1036]
And here's a pic of the whole setup.
With this I can play all of my JAMMA and System 16 boards. At the moment I can only watch and listen to my driving games, but I'm planning on making some new controls and adaptors for them soon.
