sega saturn a/v mod

[uk_g4rf]

i'm currently working on a saturn project of mine and one of things i am adding is the a/v to the rear trapdoor

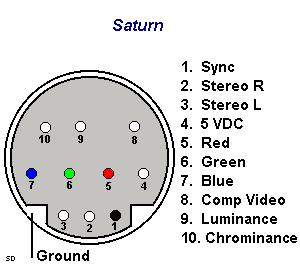

the prob is the best pic i can find is this one

now i've got the red and white + sorted but am having trouble in working out where my yellow (video) + and - go aswell as my left and right audio - go pls help



[mal]

Going by that picture you'd connect video + to pin 8 (Comp Video) and all 3 - connections to the ring of the socket (ground).



[uk_g4rf]

thanx m8 got that in now just need to sort everything else on it now ie region switch 50/60 and s-video
