Internal or External??

  • Internal

    Votes: 0 0.0%
  • External

    Votes: 3 100.0%

  • Total voters
    3

Aska

New Member
Joined
Jul 27, 2019
Messages
12
Points
3
Age
32
Ive been working hard at an hdmi solution for saturn. My test pcbs should be arriving soon. I currently my design is external but sourcing 10pin mini connector is becoming difficult. So what would the scene nce prefer??


Aska

New Member
Joined
Jul 27, 2019
Messages
12
Points
3
Age
32
Looking for the male connector, I've only found a 1-2 places that actually have some.


zone66x

New Member
Joined
Mar 1, 2016
Messages
44
Points
8
Location
Canada
Yeah definitely harder to find an actually diy male connector for that one. Do you need all 10 pins for signal? Technically a USB3 and DB9 cable has 9 pins plus the the connector shield as ground.


Aska

New Member
Joined
Jul 27, 2019
Messages
12
Points
3
Age
32
No actually 7 is needed.RGB, Sync,5v and L&R audio. Ground is also connected to the connector shield .


antime

Extra Hard Mid Boss
Joined
Jan 24, 2002
Messages
2,590
Points
48
Website
www.iki.fi
The 10-pin connector isn't an actual DIN standard, which is why you can't find them at any of the normal component distributors.

Edit: This might be the right type of connector, though I couldn't find the part on the manufacturer's own website.


Aska

New Member
Joined
Jul 27, 2019
Messages
12
Points
3
Age
32
Exactly I’ve found few but so little quantity.


Aska

New Member
Joined
Jul 27, 2019
Messages
12
Points
3
Age
32

zone66x

New Member
Joined
Mar 1, 2016
Messages
44
Points
8
Location
Canada
I just randomly found this on Google when looking for Saturn link cable images :oops:

Xtreme HDMI Cable for Original SEGA Saturn


I guess your cable will be similar?


Aska

New Member
Joined
Jul 27, 2019
Messages
12
Points
3
Age
32
Originally planned to be then was beat to the punch. So I have been experimenting with an internal solution. But mine I had accounted for the resolution changes and was powered by the console rather a 5v USB.


nando

New Member
Joined
Aug 17, 2019
Messages
8
Points
3
Those cheap HDMI cables have a lot of issues. They use the same scaling hardware used in cheap TVs which means they are slow and laggy. Then there's the problems with resolution changes, ghosting, etc.

I justified my HD Retrovision cable because I can use it on both the Saturn and Genesis. It's pretty much flawless, although I still wish I had an HDMI cable for the Saturn instead of having to share a cable for one input. Modern TVs are lucky to have one component input, much less two..


Aska

New Member
Joined
Jul 27, 2019
Messages
12
Points
3
Age
32
Mine is more of a adapter than a cable. You would plug it the back of your Saturn and plug an HDMI cable to it rather than all in to one. It's already a niche market. So with the cables being readily available now. Kinda makes re think the whole project. But its great to see so much life in the community.


zone66x

New Member
Joined
Mar 1, 2016
Messages
44
Points
8
Location
Canada
Yeah it's kinda nice to see people pouring their passion and skills to bring out the potential in the consoles they love :)


BlueCollarGamer

New Member
Joined
Jul 30, 2019
Messages
4
Points
1
Age
35
Those cheap HDMI cables have a lot of issues. They use the same scaling hardware used in cheap TVs which means they are slow and laggy. Then there's the problems with resolution changes, ghosting, etc.

I justified my HD Retrovision cable because I can use it on both the Saturn and Genesis. It's pretty much flawless, although I still wish I had an HDMI cable for the Saturn instead of having to share a cable for one input. Modern TVs are lucky to have one component input, much less two..
Can it be used on a genisis thats hasnt had a triple bypass installed?


BlueCollarGamer

New Member
Joined
Jul 30, 2019
Messages
4
Points
1
Age
35

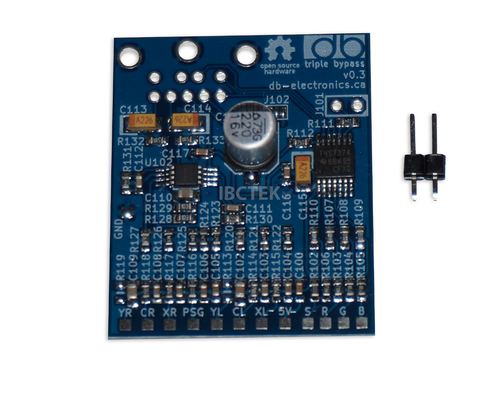

That would be a yes then. A triple bypass is an RGB amp mod.
